Robomaster TT (Tello) Educational Drones

Software download: https://www.dji.com/de/robomaster-tt/downloads

DFRobot General Tutorial DFRobot Mind+

YouTube: Mind+ Tutorial How to connect and run code on Robomaster Tello Talent on Mind plus software

Update Drone Firmware

Can only be done through the phone app!
Download the newest Firmware in the App while still connected to the internet - before connecting to the drones wifi

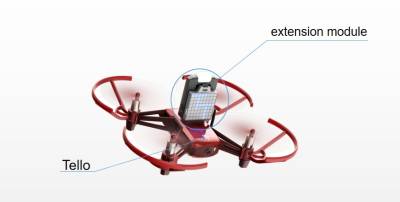

Connect to the drones Wifi (TELLO-xxxx) without the extension module connected!
Under the app settings update firmware

Modify Extension Module Wifi AP

Connect only the extension module with a usb cable to your PC
Open the Mind+ software
Under Extensions (Bottom left) select “RoboMasterTT (ESP32)”

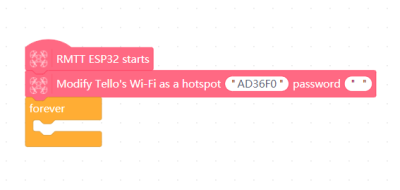

Then change the Wifi AP to something like below and press upload

HINTS

When the drone is set to STA / connect to router mode with the switch on the extension module, the propellers will start spinning once connected. If you want to stop the propellers simply lift the drone.

PYTHON

from djitellopy import TelloSwarm

# Create a swarm with two Tello drones
swarm = TelloSwarm.fromIps(["192.168.2.122", "192.168.2.123"])

# Connect to the drones
print("Connecting to drones...")
swarm.connect()

#print("Battery levels:")
#for i, battery in enumerate(swarm.get_battery(), start=1):
#	print(f"Tello{i}: {battery}%")

# Change the LED colour of both drones
swarm.parallel(lambda i, tello: tello.send_expansion_command("led 255 0 0"))

# Execute commands as a swarm
swarm.takeoff()
swarm.parallel(lambda i, tello: tello.move_forward(50))

# Rotate only the second drone
swarm.tellos[1].rotate_clockwise(90)

# Change the LED colour of the second drone
swarm.tellos[1].send_expansion_command("led 0 255 0")

# Land all drones simultaneously
swarm.land()

print("Mission complete!")
